HARVARD ADVANCED SAFETY VENTILATOR INSPIRA ASV, CATALOG NO. 55-7058

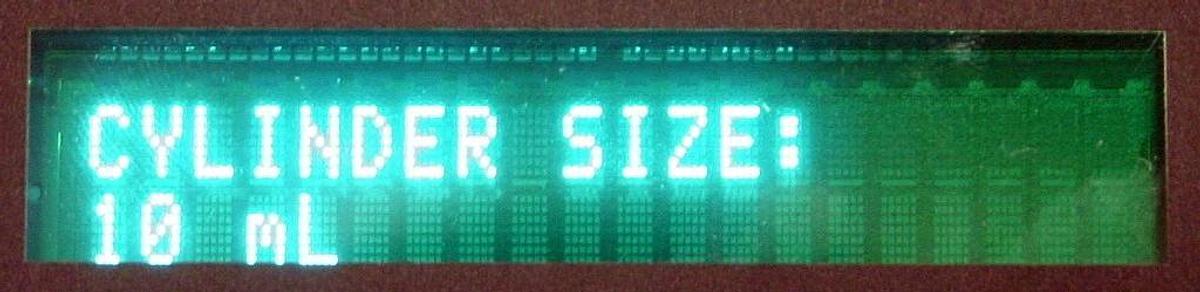

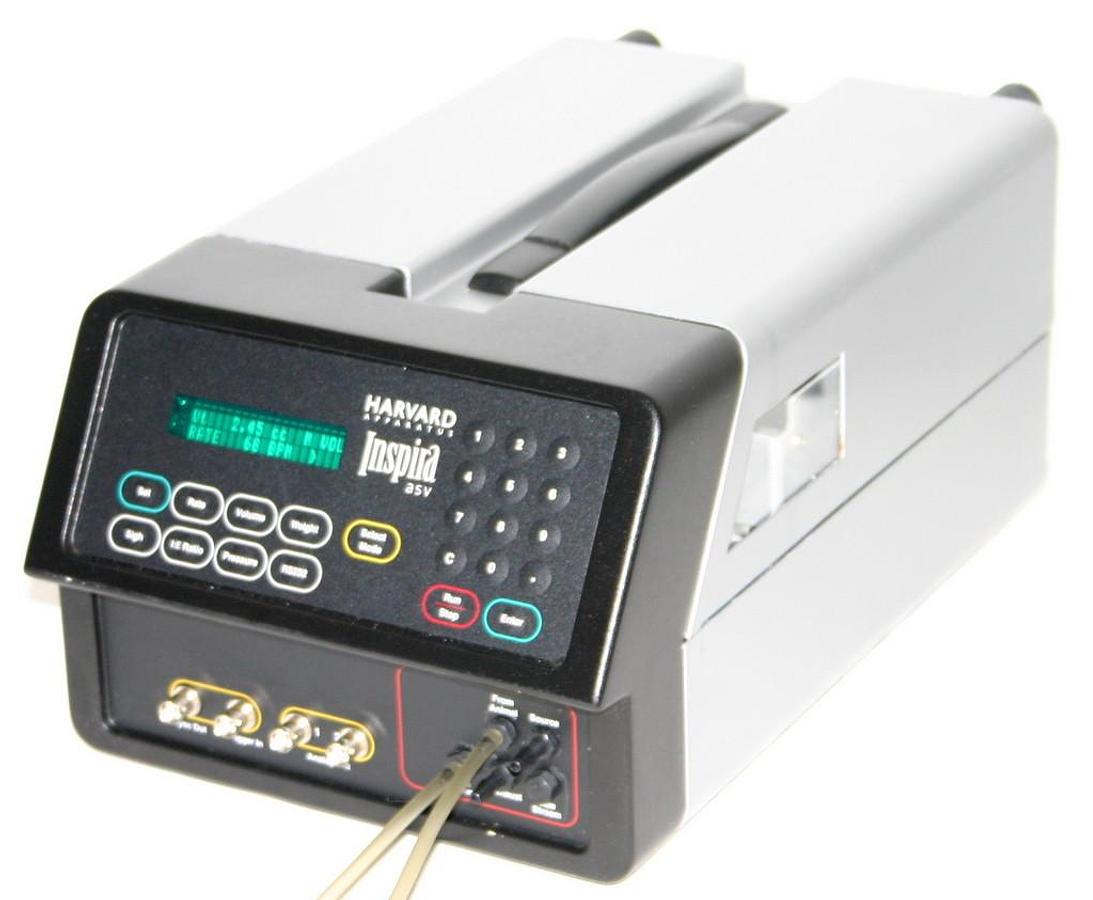

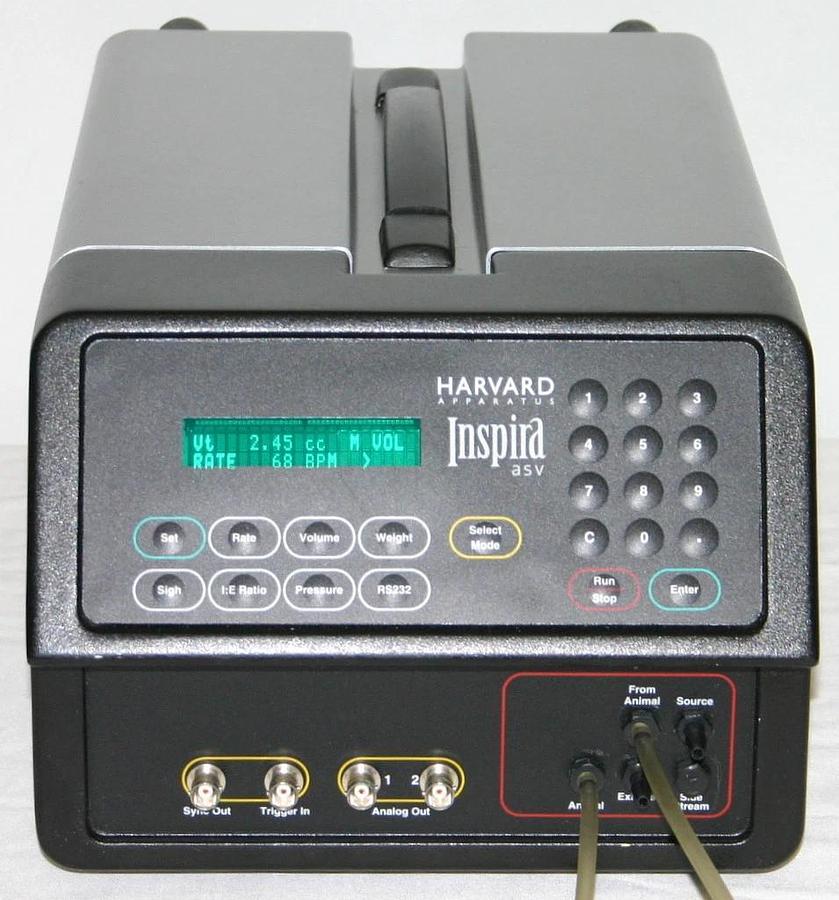

HARVARD ADVANCED SAFETY VENTILATOR INSPIRA ASV, CATALOG NO. 55-7058 Harvard Apparatus Advanced Safety Ventilator Volume Controlled Model Inspira ASV Catalog Number 55-7058 Manufacturers Description: The Inspira is Harvardâs first ventilator that can ventilate animals from mice to cats using the same machine. Its versatility and ease of use allow safer and superior ventilation. The Inspira Ventilator uses an advanced piston/cylinder assembly and a microprocessor controlled actuation mechanism to precisely control respiration profiles. Two interchangeable piston/cylinder  assemblies are available to provide a wide range of tidal volumes. The ventilator auto-detects which cylinder, or if no cylinder, is installed. Variable flow valves control the gas flow for inhalation and exhalation. The Inspira ASV Volume Controlled Ventilator delivers the desired tidal volume to the animal by precisely controlling the stroke of the piston. Since actual stroke length (and therefore tidal volume) may be modified for a given stroke, sigh breaths are supported. Since stroke speed is precisely controllable during inspiration and expiration, variable inspiration-to-expiration ratios are also supported. A pressure sensor continuously monitors the airway pressure to prevent over-pressure conditions. Most volume-controlled ventilators presently available do not support sigh breaths and do not provide any pressure monitoring as a safety feature. The Inspira ASVp pressure-controlled ventilator adds pressure control capability to the ASVv volume-controlled platform. Inspiration pressure is limited to the user entered pressure setting. Flow rates are automatically adjusted by the microcontroller by changing the tidal volume while keeping the inspiration time constant. The flow rate is adjusted so that the inspiration pressure limit is reached near the end of the piston stroke, ensuring that animals with a higher airway resistance receive the majority of the expected tidal volume and that the ventilator does not prematurely terminate the piston stroke. No manual adjustment of inspiratory flow rates is required. The ASVp also adds PEEP capability for both the volume- and pressure-control modes. The machine allows a PEEP setting up to 10cmH2O. Specifications: Animal Size: 15 g to 10 kg Volume: 0.1 to 100 ml Port Sizes: 1/8â-27 NPT threaded nylon barbed ports, accommodates 1/16â, 1/8â, 3/16â ID Tubing (Default = 1/8â ID Tubing) Control Modes: Volume or Assist Breathing Rate: 5 to 200 bpm Resolution: 1 breath/min % Inspiratory Time: 20 to 80% of cycle time (Default = 50%) I:E Ratio: 4:1 to 1:4 (Default = 1:1) Inspiratory Flow: 0 to 12 SLPM Gas Supply: Room air or nonflammable mixed gas Inspiration Pressure: Full Range: 5 to 50 cmH2O Safe Range: 15 to 25 cmH2O Accuracy: +/- 1 cmH2O Resolution: 1 cmH2O Sigh Frequency: 1 in 5 to 1 in 250 breaths (Default = No Sigh) Sigh Pressure: Full Range: Insp. Pressure to 50 cmH2O Safe Range: Insp. Pressure to (Insp. Pressure + 10cmH2O) or 35cmH2O, whichever is less Respiratory Assist: Available Assist Trigger: -1 to -10 cmH2O (Default = -5 cmH2O) Signal Inputs: External Trigger Input: 0 to +5 V digital pulse, active low Signal Outputs: Sync Out: (ASVv) 0 to +5 V digital pulse, 20 ±10 ms wide, active low Sync Out: (ASVp) V0H for Inspiration Duration V0L for Expiration Duration AnalogOut1: 0 to +5 V analog (Default = Airway Pressure Signal) Airway Pressure Signal: Pressure Range: ±67 cmH2O (±50 mm Hg) Sensitivity: 30 mV/cmH2O, typical (40.0 mV/mmHg, typical) Signal Level: +0.5 to +4.5 V Offset: +2.5 V ±0.05 V Response: 1 ms max AnalogOut2: 0 to +5V analog (Default = Not Used) Remote Communications: RS232 Display: 2 line x 20 character Vacuum Fluorescent Display (VFD) Power: AC 100 to 240 V, 50/60 Hz, 75 watts Condition: Excellent. Guaranteed to meet original manufacturerâs specifications. Passes Piston and Valve Tests. 30 Day warranty. University & Fortune 1000 Company Purchase Orders with open billing, Net 30. Will email a PDF copy of the manual. Has a few minor scratches Tubing shown not included. Overall Dimensions: 10"W x 17 ½"D x 8"H Net Weight: 21 pound Payment I accept the following forms of payment: PayPal Shipping & Handling Please check eBay's Shipping & Payment tab UPS Ground FREE scheduling, supersized images and templates. Get Vendio Sales Manager. FREE scheduling, supersized images and templates. Get Vendio Sales Manager. Over 100,000,000 served. Get FREE counters from Vendio today!
