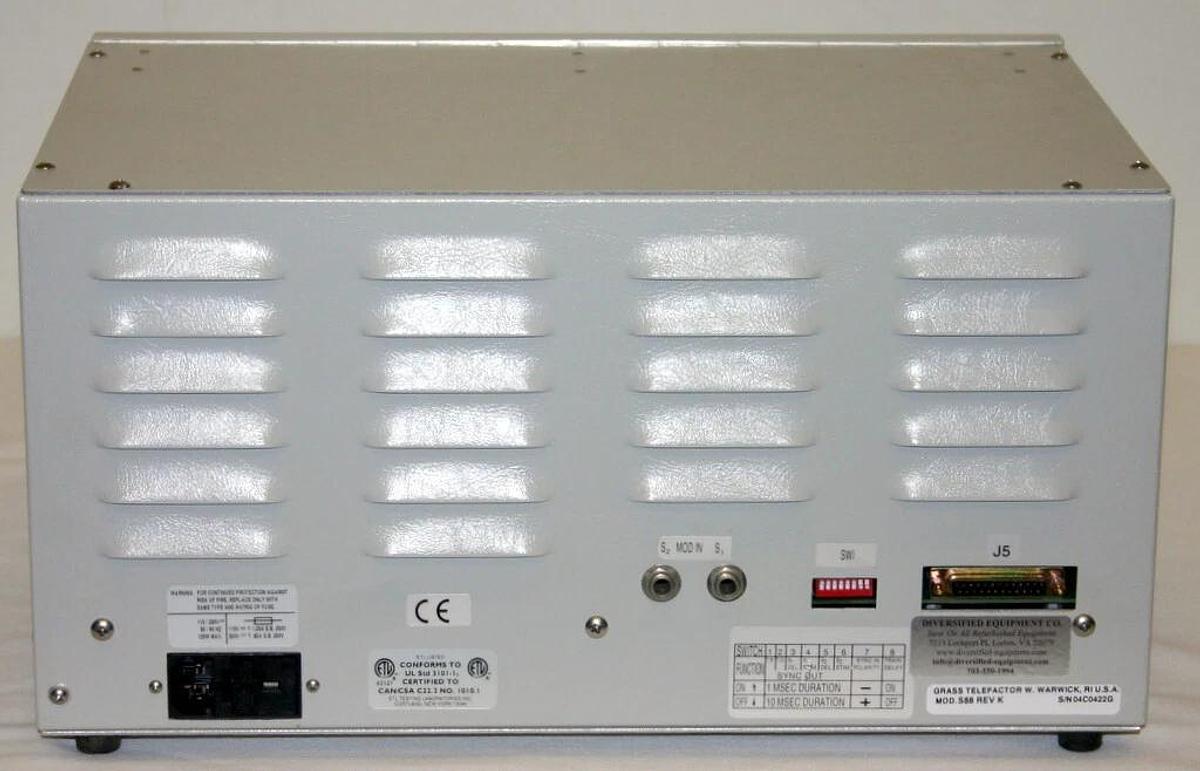

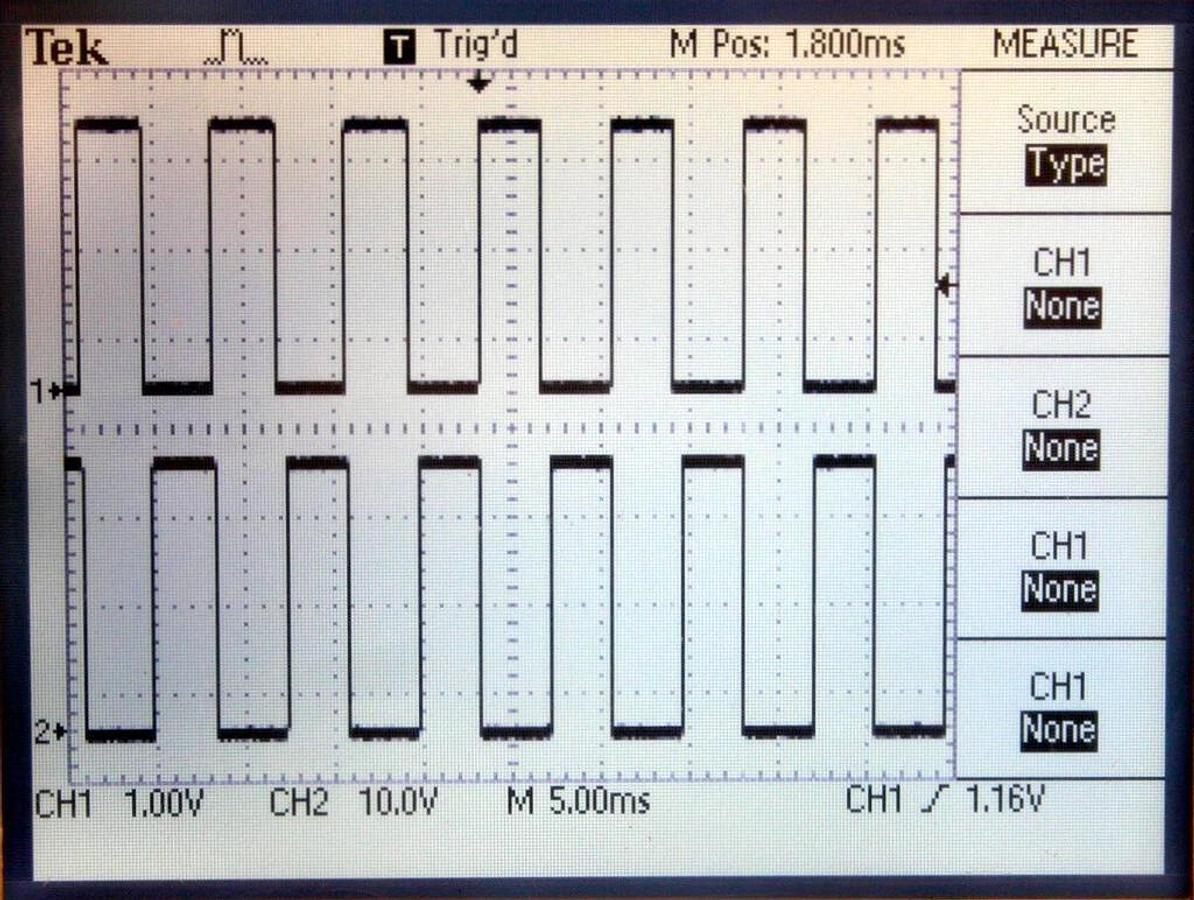

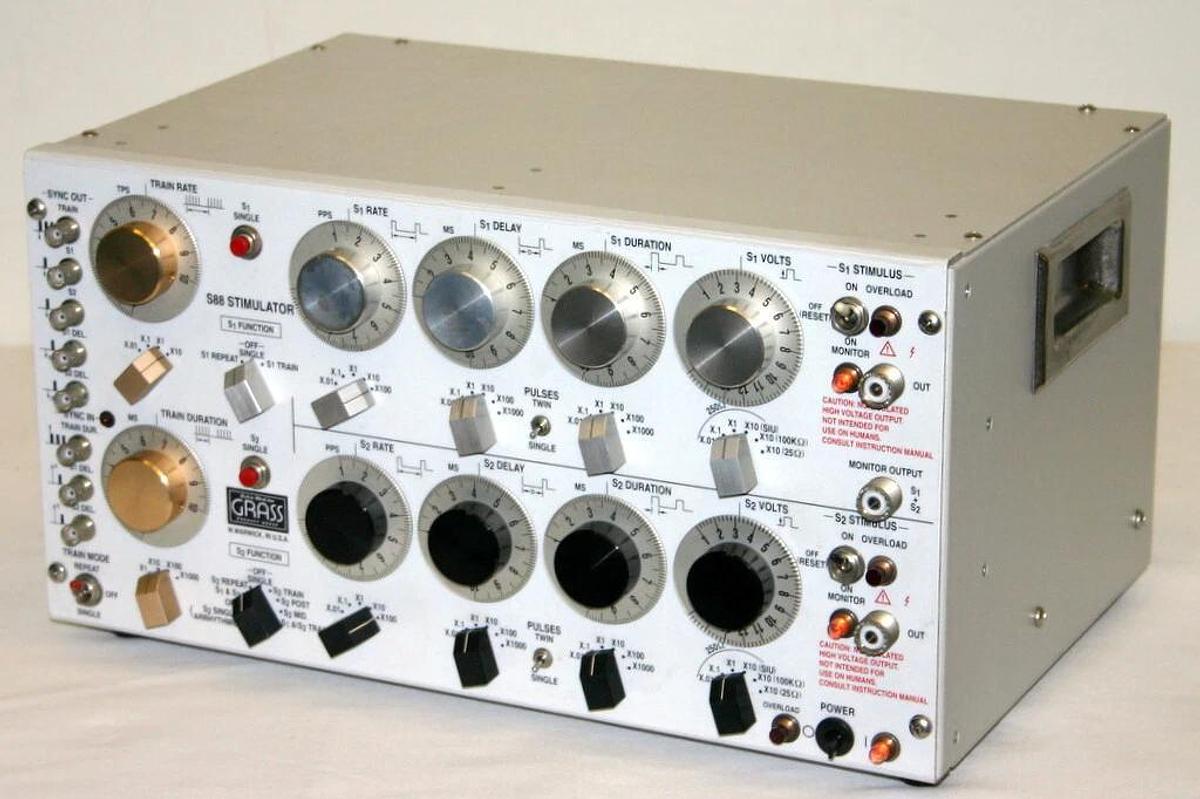

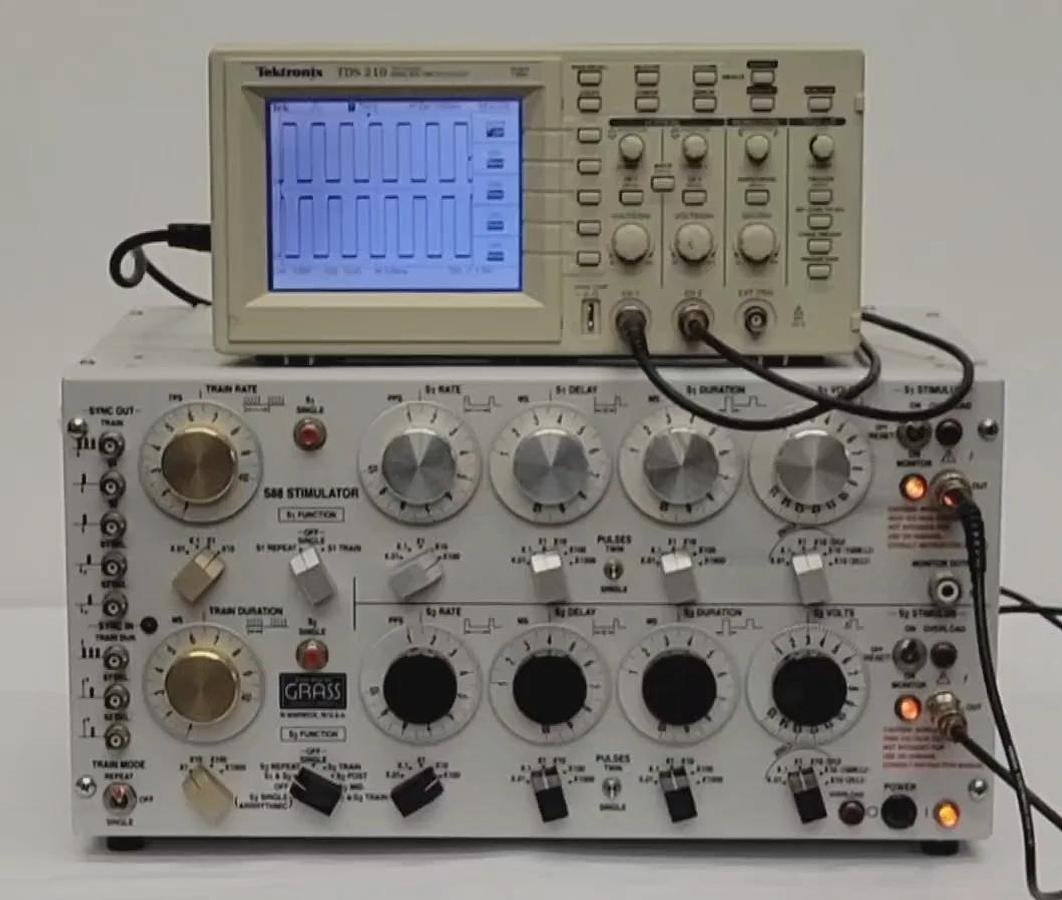

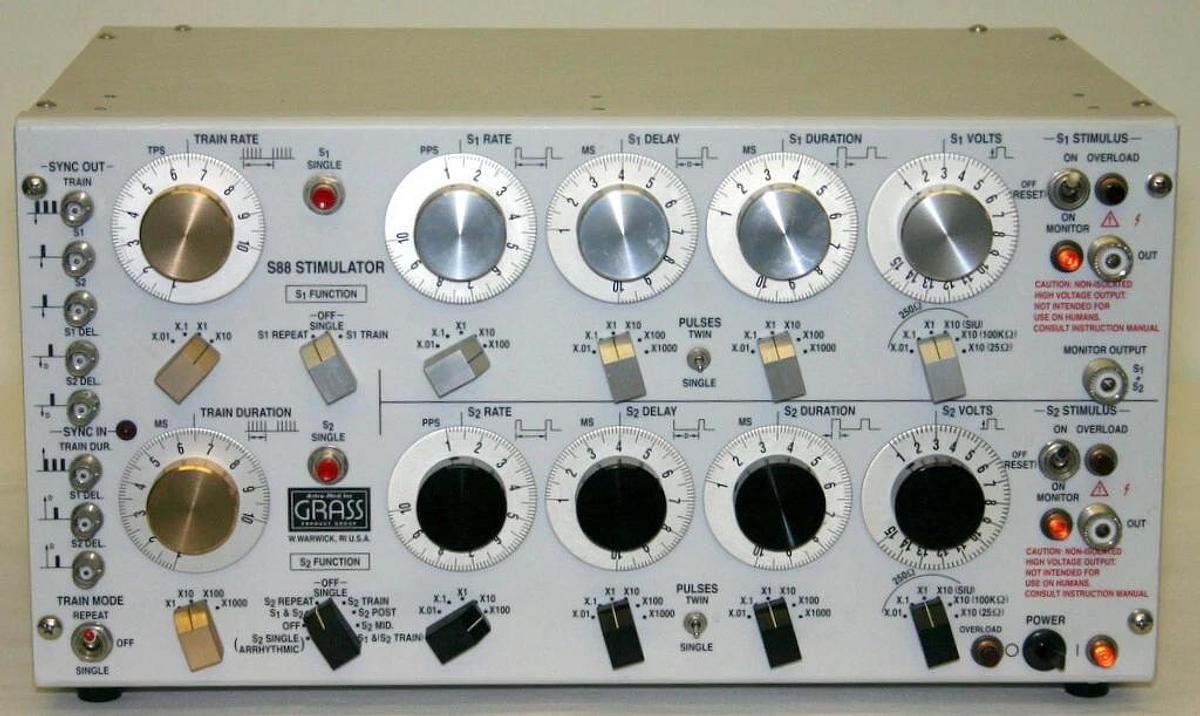

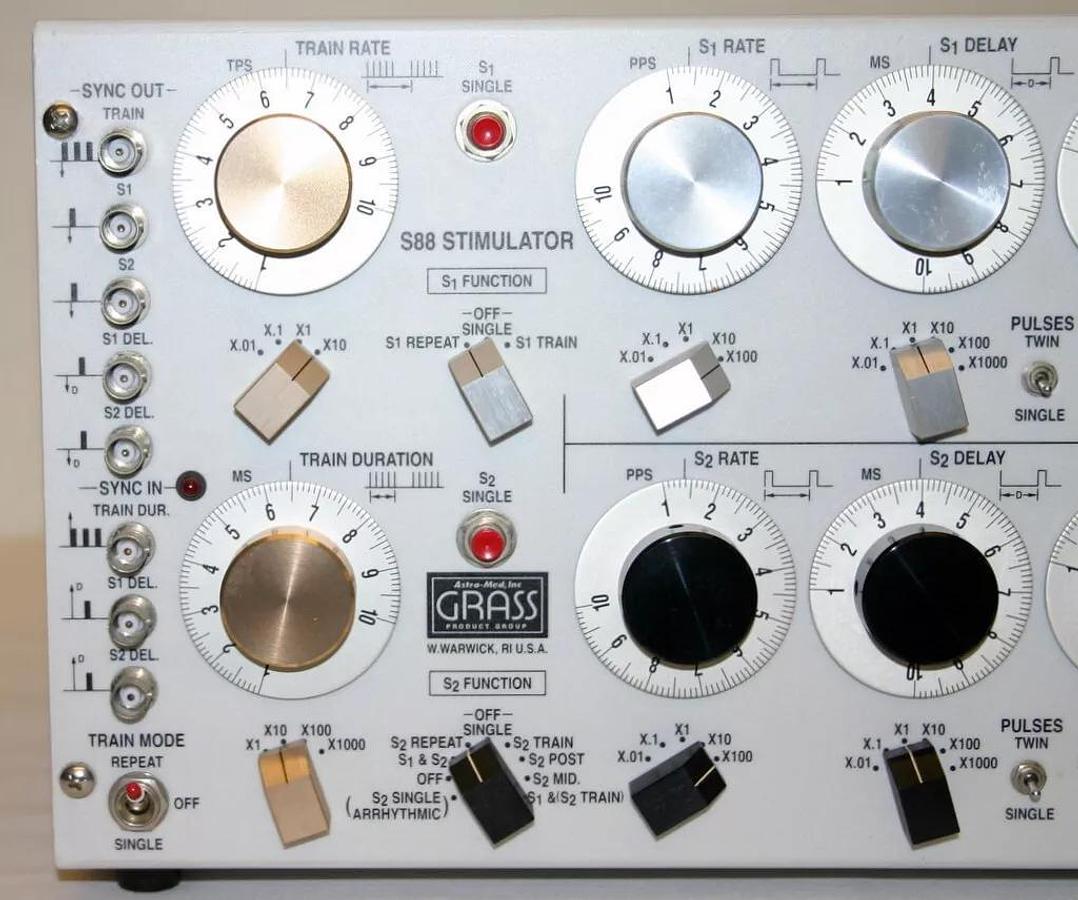

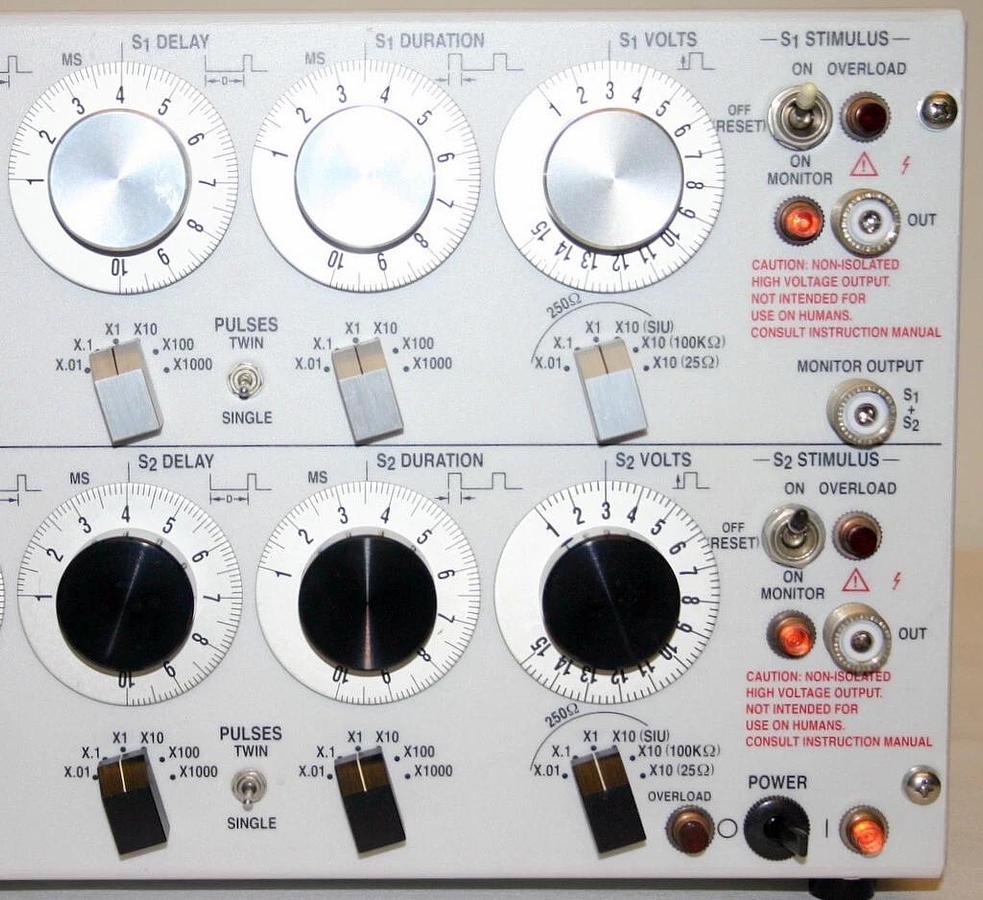

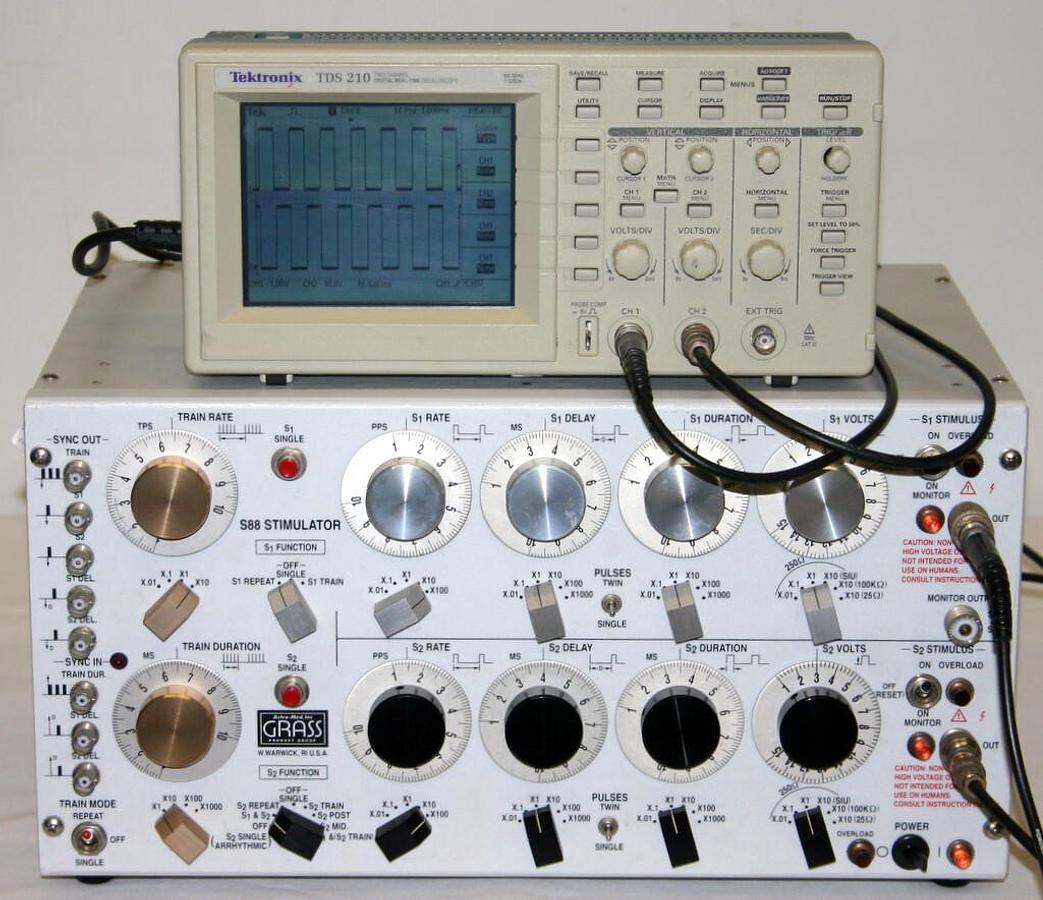

ASTRO-MED GRASS TELEFACTOR NATUS DUAL OUTPUT STIMULATOR, MODEL S88 REV. K Astro-Med Grass Telefactor Natus Neurology Dual Output Stimulator Model S88 Oscilloscope used for testing not included. Manufacturers Description: The S88 is a dual channel, general purpose stimulator for nerve and muscle stimulation procedures. Applications extend from single cell to entire muscle stimulation. The two output channels can be operated independently or synchronized to produce complex paradigms. The outputs are non-isolated constant voltage positive pulses. Manufacturer Specifications: Train Rate (S1 and S2):  1/100 sec to 100 TPS (4 decades). Train Duration:  1 msec to 10 sec (4 decades). Rate (S1 and S2):  1/100 sec to 1000 PPS (5 decades). Pulse Delay (S1 and S2):  10 μsec to 10 sec (6 decades). Pulse Duration (S1 and S2):  10 μsec to 10 sec (6 decades). Synchronous Outputs (TTL):  S1, S2, S1 Delay, S2 Delay, Train; Front Panel: 10 μsec, 50 ohm; Rear Panel: 1 or 10 msec and Train End. Synchronous Inputs (TTL):  Train Duration, S1 Delay, S2 Delay; Trigger from rising or falling edge. Rear Connector (DB25S):  All SYNC INPUTS and OUTPUTS; External Analog Rate Control Volts Out (S1 and S2):  10 mV to 150 volts (4 decades). Peak Output Current:    450 mA. Output Impedance:  250 ohm nominal on all voltage ranges; 25 ohm and 100 kohm on highest range. AC POWER:    115/230 volts, 50/60 Hz, 125 watts peak, 20 watts standby. 90 day warranty. University, Fortune 1000 Company and Federal Gov. agency (certified SAM vendor) Purchase Orders with open billing, Net 30. Overall Dimensions: 19"W x 12.5"F-B x 9"H Net Weight: 17 pounds Payment I accept the following forms of payment: PayPal Shipping & Handling Please check eBay's Shipping & Payment tab UPS Ground FREE scheduling, supersized images and templates. Get Vendio Sales Manager. FREE scheduling, supersized images and templates. Get Vendio Sales Manager. Over 100,000,000 served. Get FREE counters from Vendio today!
