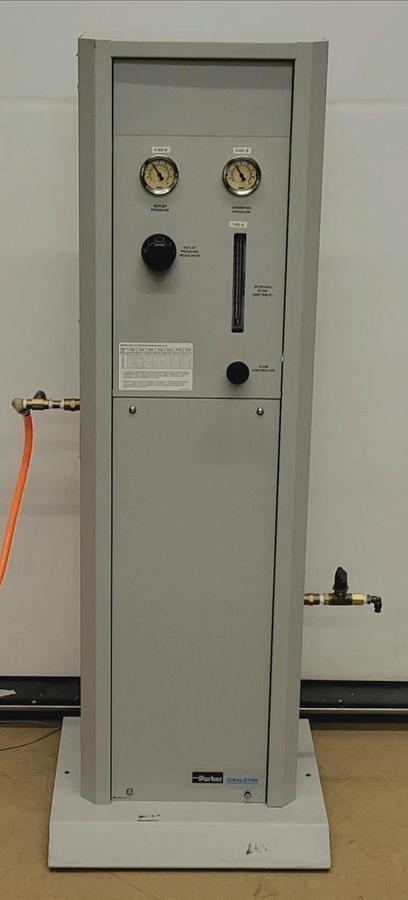

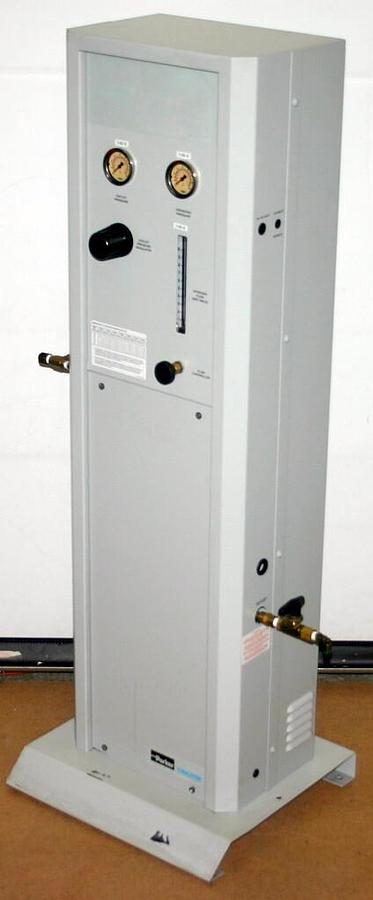

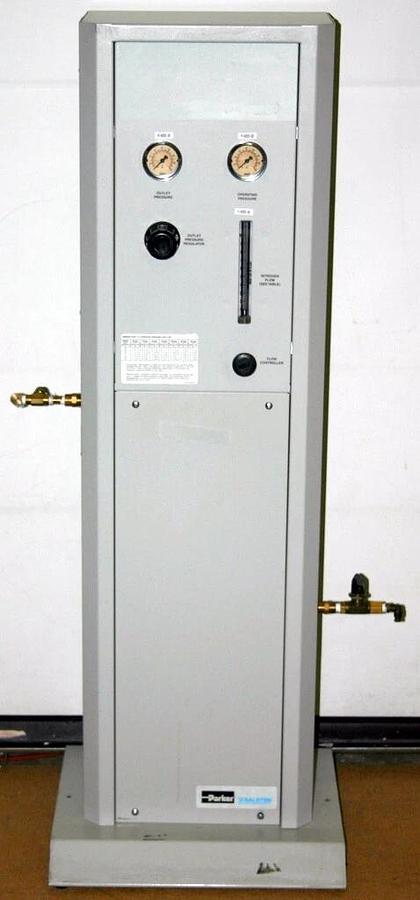

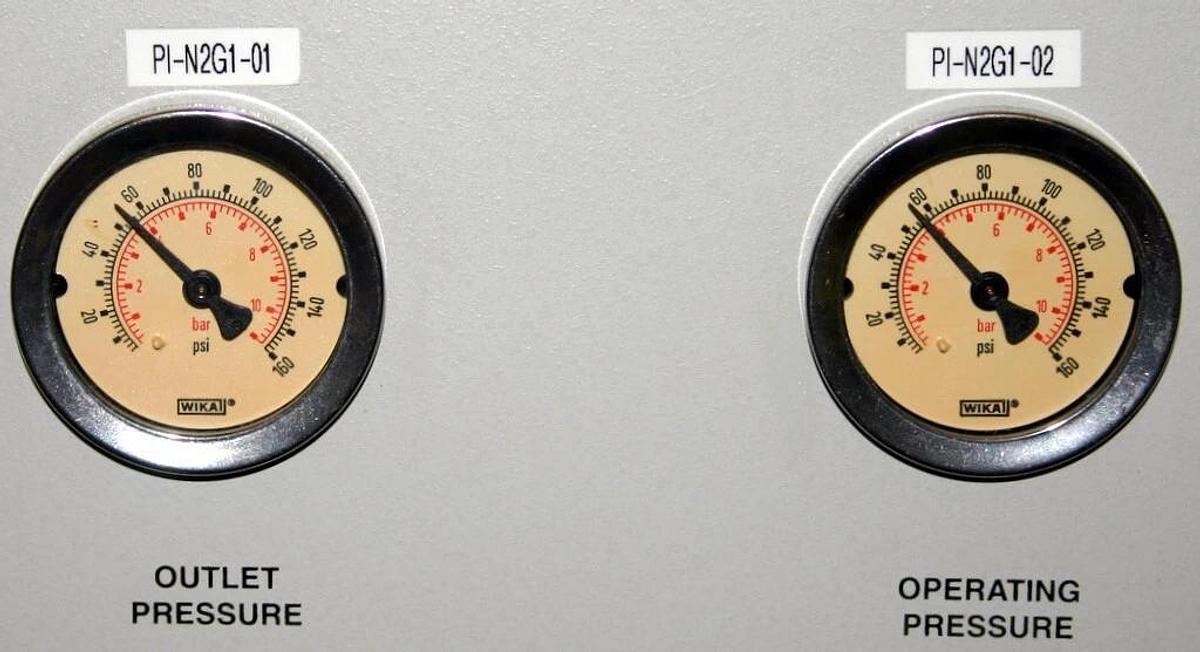

PARKER BALSTON HANNIFIN NITROGEN GENERATOR SYSTEM FOR LC-MS, MODEL N2-14

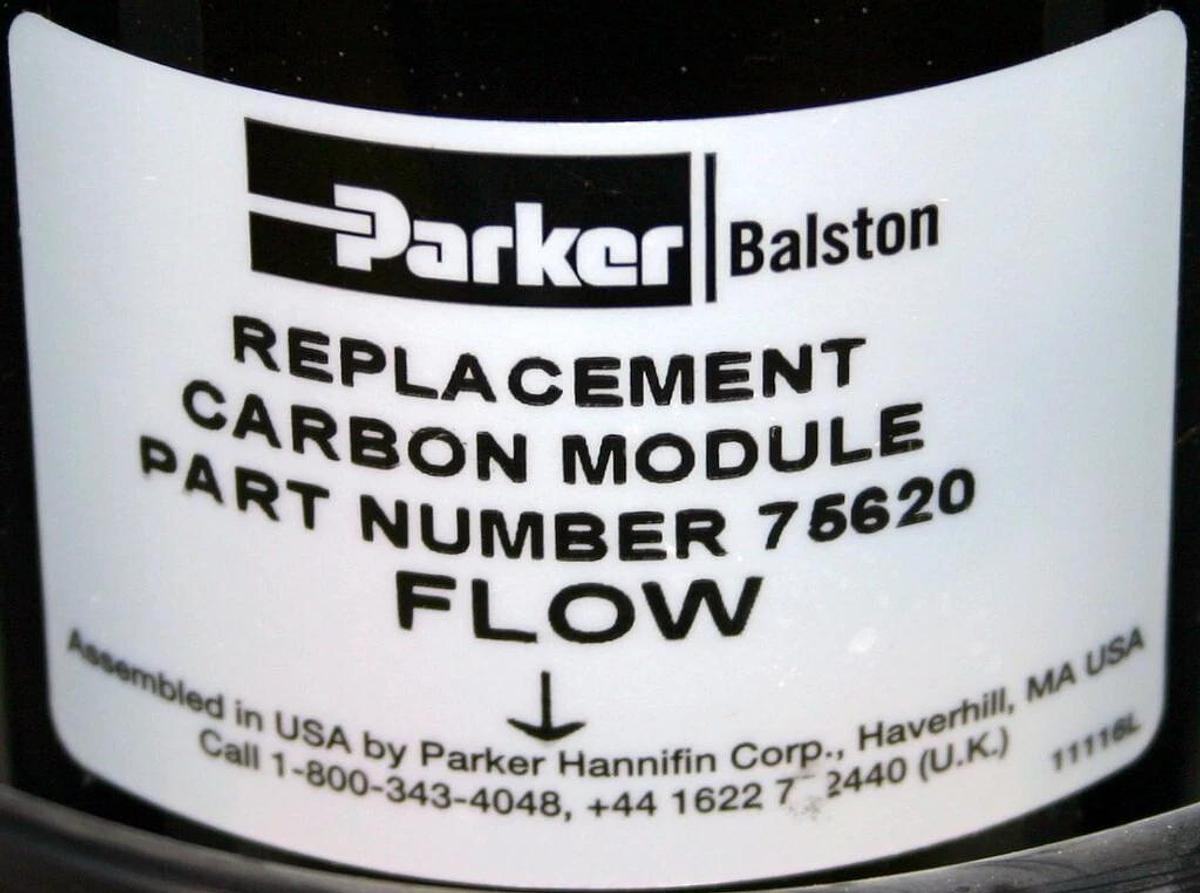

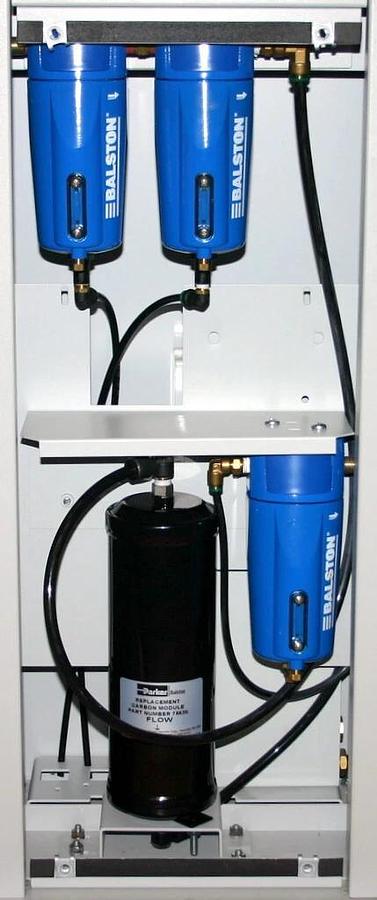

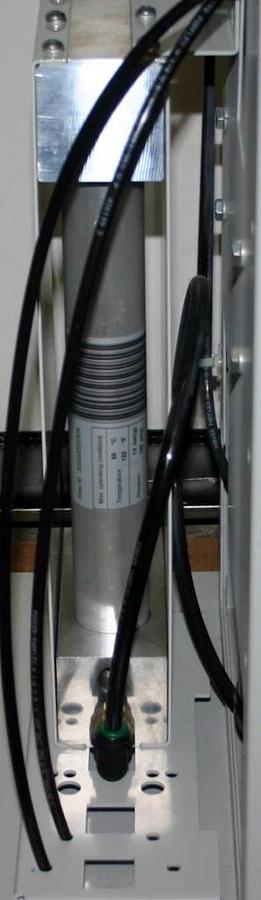

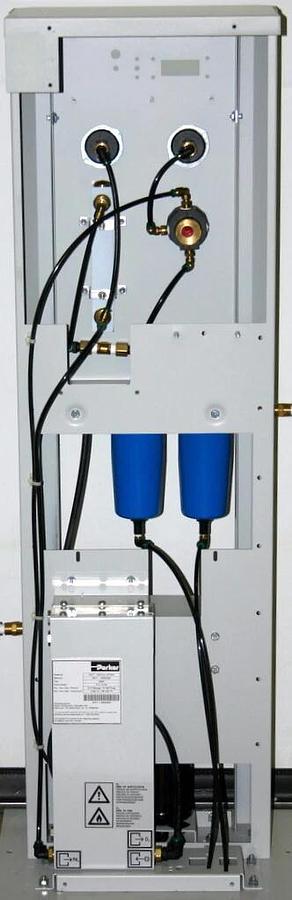

PARKER BALSTON HANNIFIN NITROGEN GENERATOR SYSTEM FOR LC-MS, MODEL N2-14 Parker Balston Hannifin Nitrogen Generator for LC-MS Model N2-14 60 L/Min Max. Flow The Parker Balston Nitrogen Generator is a completely engineered system which will transform a compressed air supply into 95% to 99.5% purity compressed nitrogen. The system is based on state-of-the-art membrane technology. Compressed air flows through the hollow fiber membrane module and is separated into a concentrated nitrogen output stream and an oxygen enriched permeate stream. The compressed nitrogen is filtered and delivered to the process or equipment downstream. The permeate is vented to the atmosphere. Description: Prefiltration: Two coalescing prefilters and one activated carbon scrubber are incorporated into the Parker Balston Nitrogen Generator to protect the membrane module from contamination. These filters are located behind the filtration access panel. The coalescing filters remove liquids and particu- late matter from the incoming air supply and are equipped with float drains which automatically drain any liquids which accumulate inside the filter housing. The drains are connected to 1/4� O.D. plastic tubing which discharges to atmosphere at the back of the nitrogen generator. The activated carbon filter removes hydrocarbons which may be detrimental to the membrane fibers. Air Separation: Air separation takes place in the membrane module. The module consists of bundles of hollow fiber membranes. As the air passes through these hollow fibers, oxygen and water molecules pass through the membrane wall at a higher rate than nitrogen molecules. This results in a high purity, dry nitrogen gas stream exiting the membrane module. The oxygen enriched permeate stream exits the membrane module through ports on the side of the module at a very low pres- sure. Final Filtration: The final filter is a .01 micron (absolute) membrane filter. The final membrane filter will assure the user a clean, commercially sterile supply of high purity nitrogen. Controls: The controls in the Parker Balston Nitrogen Generator consist of an operating pressure gauge, a flowmeter and flow control valve, and an outlet pressure regulator and gauge. Proper use of these controls will assure the user of a 95% to 99.5% nitrogen outlet stream, depending on operating pressure and flow rate. The pressure gauges, which are mounted on the front panel, measure operating pressure and outlet pressure. The flowmeter measures the flow rate of nitrogen exiting the membrane module. The scale on this flowmeter is dimensionless because the operating pressure can range from 60 psig to 145 psig (4 barg to 10 barg). The Nitrogen Purity Label on the control panel is used to convert the dimensionless flowmeter reading to SLPM (standard liters per minute), based on operating pressure and required purity. The flow control valve is used to set the flow rate through the system. The outlet pressure regulator allows the user to set the pressure of the emergent nitrogen gas stream. Manufacturer�s specification: Filter replacement every six months Filter condition not warranted. There are a few scratches mostly on the base. Compressor hose and quick connect coupling not included. University, Fortune 1000 Company and Federal Gov. agency (certified SAM vendor) Purchase Orders with open billing, Net 30. Buyer pays $75.00 packing for palletizing, bubble wrapping, shrink wrapping and banding plus shipping charges. Must be shipped by truck. We can assist purchaser with getting quotations for shipping. Free local pickup. Overall Dimensions: 18"W x 16.5"F-B x 51"H Net Weight: 80 pounds Shipping Dimensions: 40"L x 40"W x 60"H Shipping weight: 125 pounds Payment I accept the following forms of payment: PayPal Direct Offline Credit Card Payment: Visa/Master Card Shipping & Handling Freight - Check item description or contact seller for details. FREE scheduling, supersized images and templates. Get Vendio Sales Manager. FREE scheduling, supersized images and templates. Get Vendio Sales Manager. Over 100,000,000 served. Get FREE counters from Vendio today!
