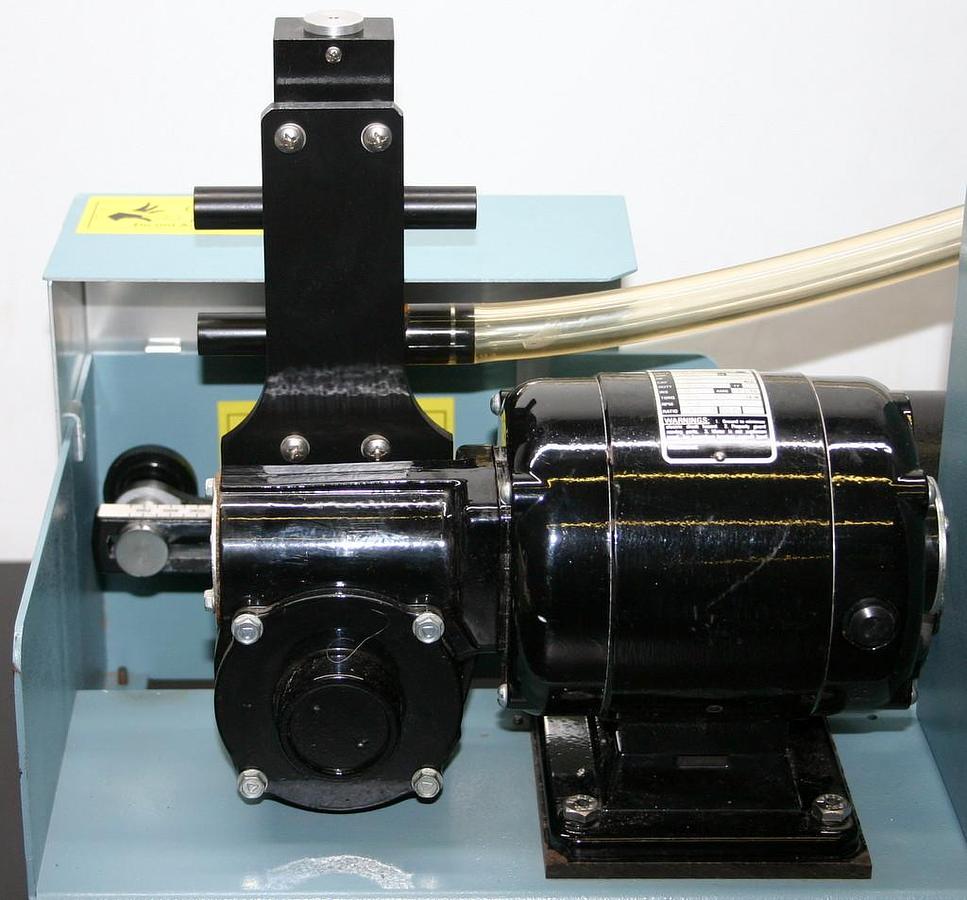

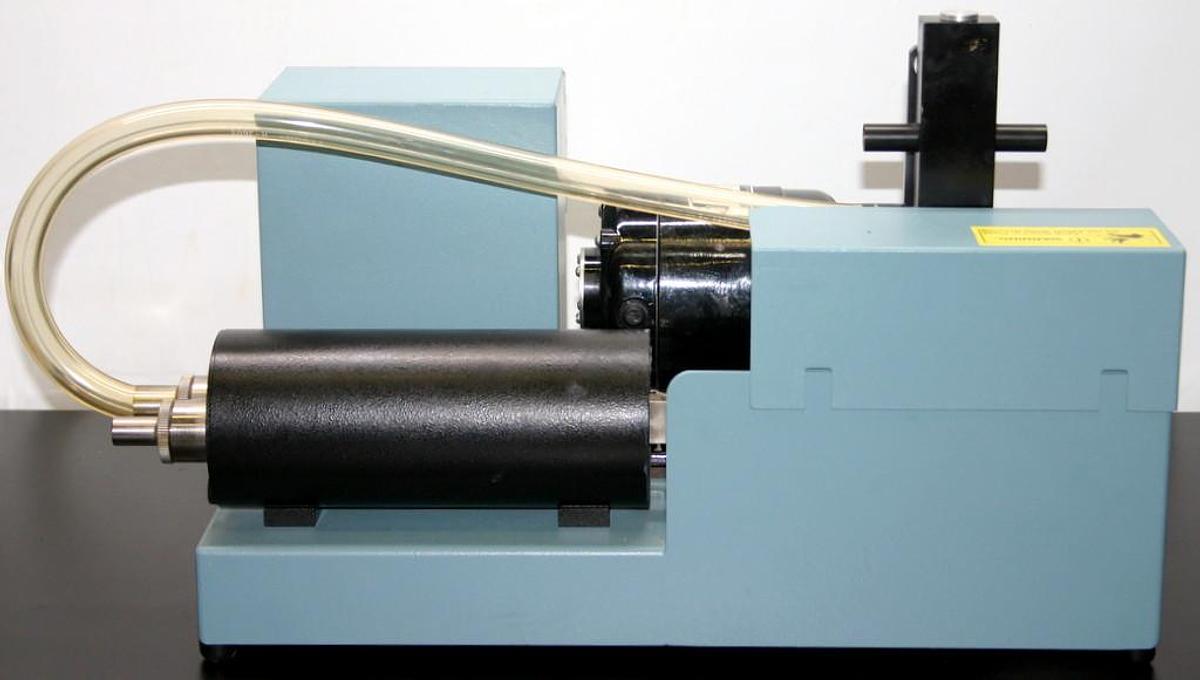

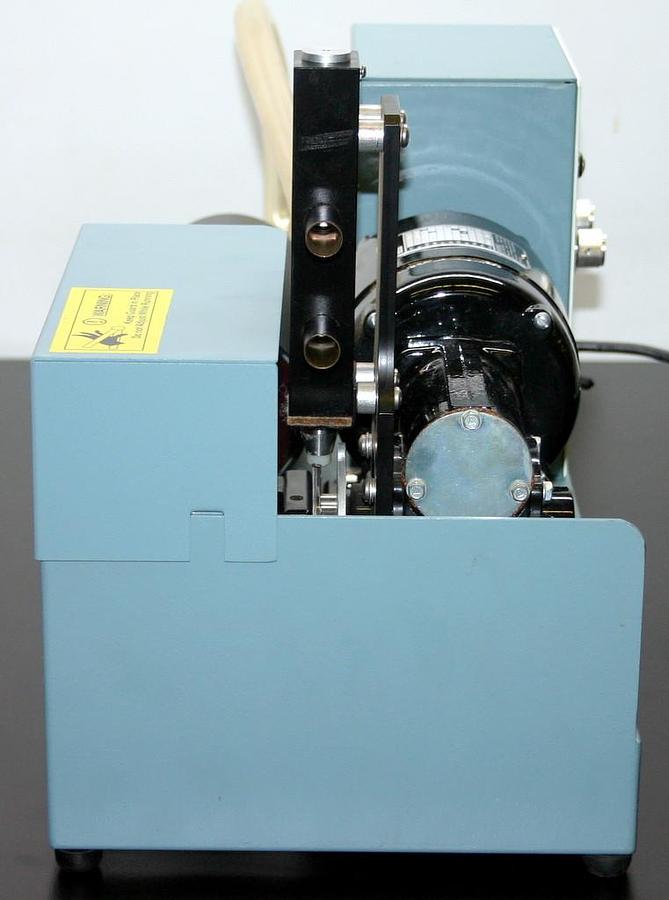

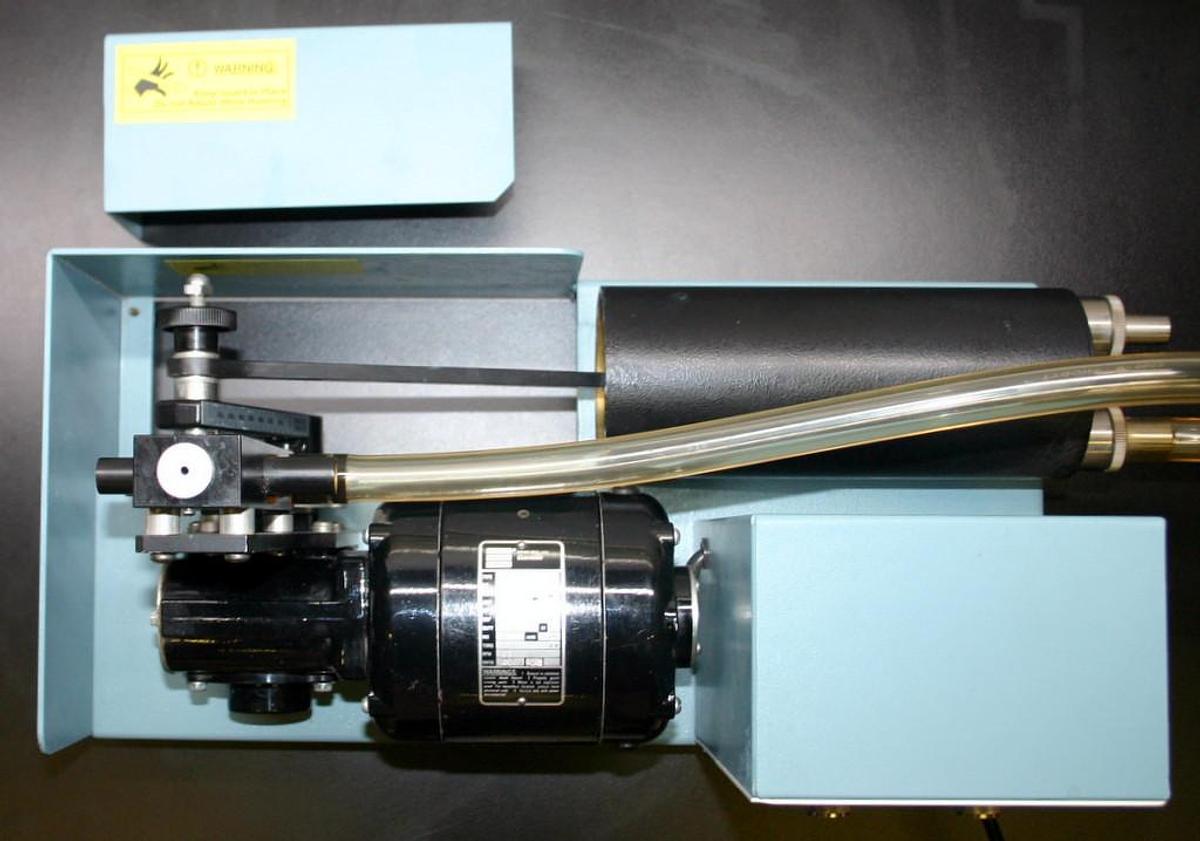

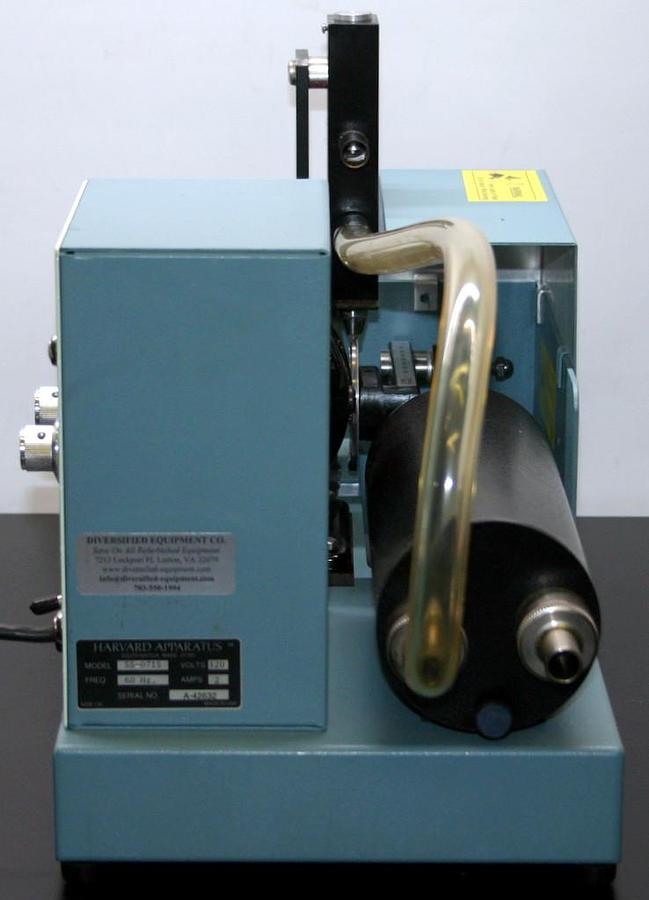

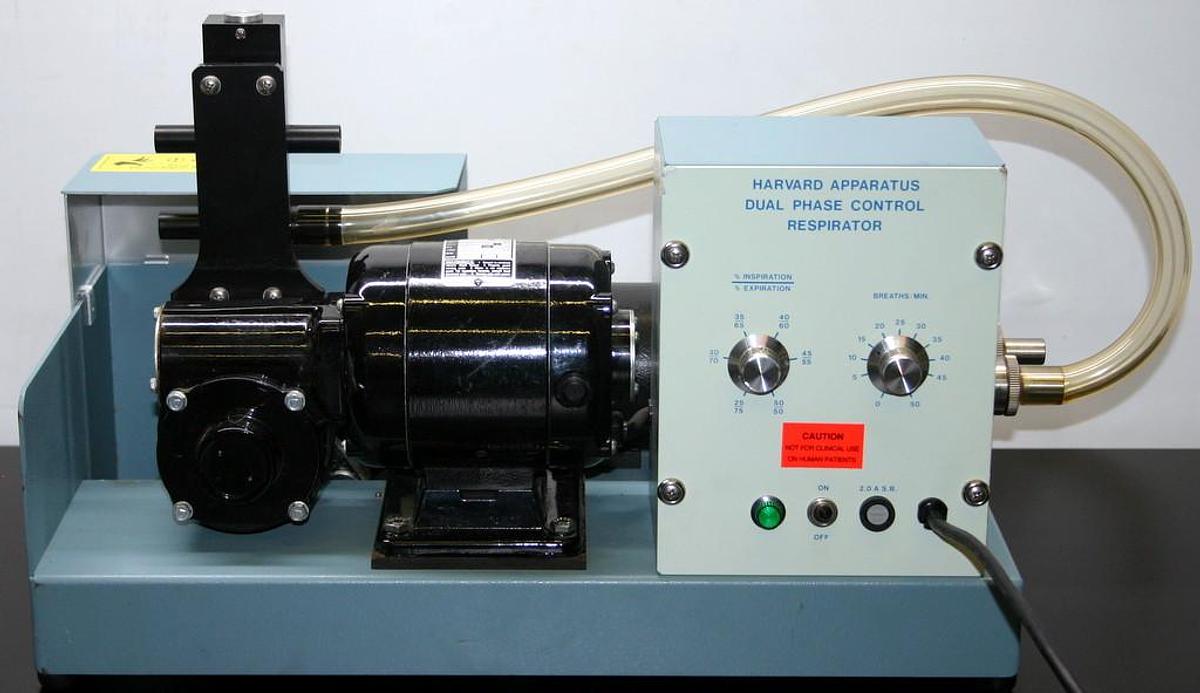

HARVARD DUAL PHASE RESPIRATOR, MODEL 55-0715, 613

Harvard Apparatus

Large Animal Volume Controlled Ventilator, Dual Phase Control Respirator

Model 613

Catalog Number 55-0715

Manufacturers Description:

This is the workhorse of the Harvard Apparatus Volume Controlled Ventilators. There are literally thousands of these Ventilators in use in leading research laboratories throughout the world. Their design has been essentially unchanged over the years. There are dozens of examples of these Ventilators giving continuous service for more than thirty years with proper care and maintenance.

* For animals from 1.5 to 50 kg (3.3 to 110 lb) in weight

* Volume adjustable from 30 to 750 cc/stroke

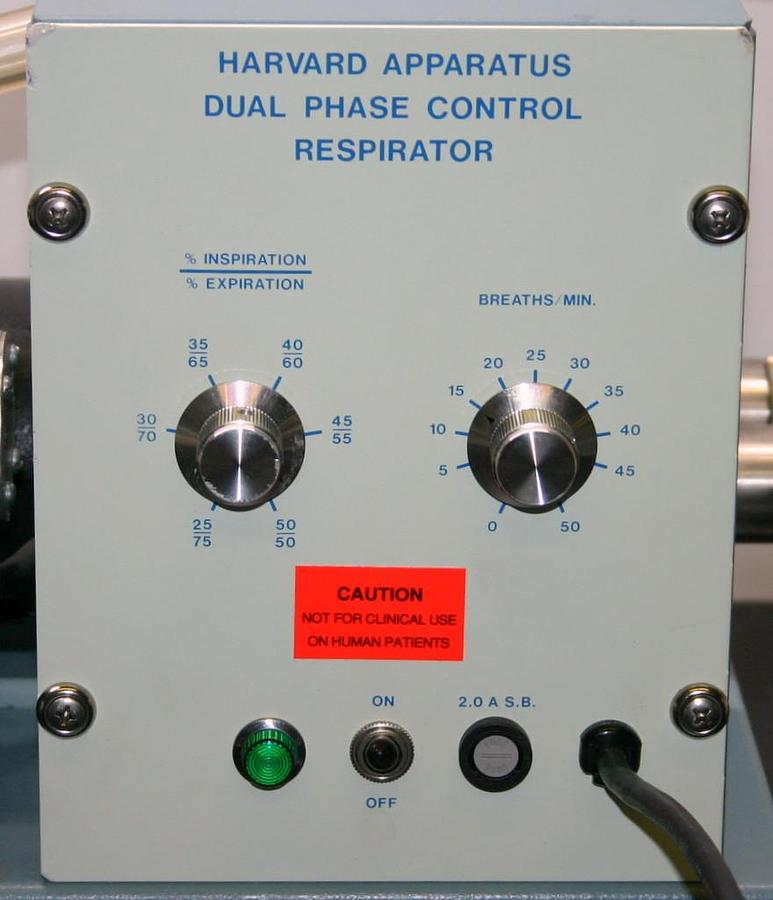

* Variable Inspiratory: Expiratory Ratio

Note that the volume adjustment is made on the piston shaft, and that therefore accurate volume adjustment cannot be made while the ventilator is running. However, the rate and the I:E % can be varied while the ventilator is running. Air/gas valving is by the four port system with separate ports for gas inlet, gas outlet (to animal), gas return (from animal), and ventilator exhaust.

The gas inlet can be used to supply air or any non-flammable gas supply. Like the other Harvard mechanical ventilators, attachment of the ventilator exhaust to a column of water can be used to produce a positive and expiratory pressure (PEEP).

Specifications:

Number of Animals ----------------- 1

Species -------------------------------- Rabbit, cat, dog

Control Modes ----------------------- Volume

Gas Supply --------------------------- Room air or non-flammable mixed gas

Display -------------------------------- None

IE Ratio ------------------------------- 25:50 of single stroke

PEEP ---------------------------------- Provided via attachment of water column

Respiration Rate --------------------- 7 (min) to 50 (max) breaths/min

Respiration Rate Note -------------- Adjustable from 7 to 50 strokes/min while the ventilator is running

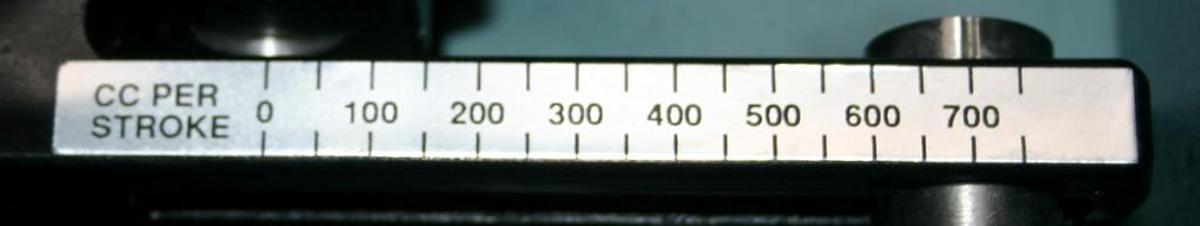

Stroke Volume ----------------------- Continuously adjustable from 30 to 750 cc/stroke

Stroke Volume Note ---------------- Adjustable from 30 to 750 cc/stroke (adjustment must be made while ventilator off)

Port Size OD ------------------------- 0.625 in (15.9 mm)

Port Size ID -------------------------- 0.5 in (12.7 mm)

Fully tested, guaranteed to meet original manufacturers specifications.

Condition: Excellent.

30 Day warranty.

University, Fortune 1000 Company and Federal Gov. agency (certified SAM vendor) Purchase Orders with open billing, Net 30.

Overall Dimensions: 20"L x 10"W x 12"H

Net Weight: 45 pounds
