WORLD PRECISION INSTRUMENTS WPI MICROSYRINGE PUMP CONTROLLER UMC4 & PUMPS UMP3

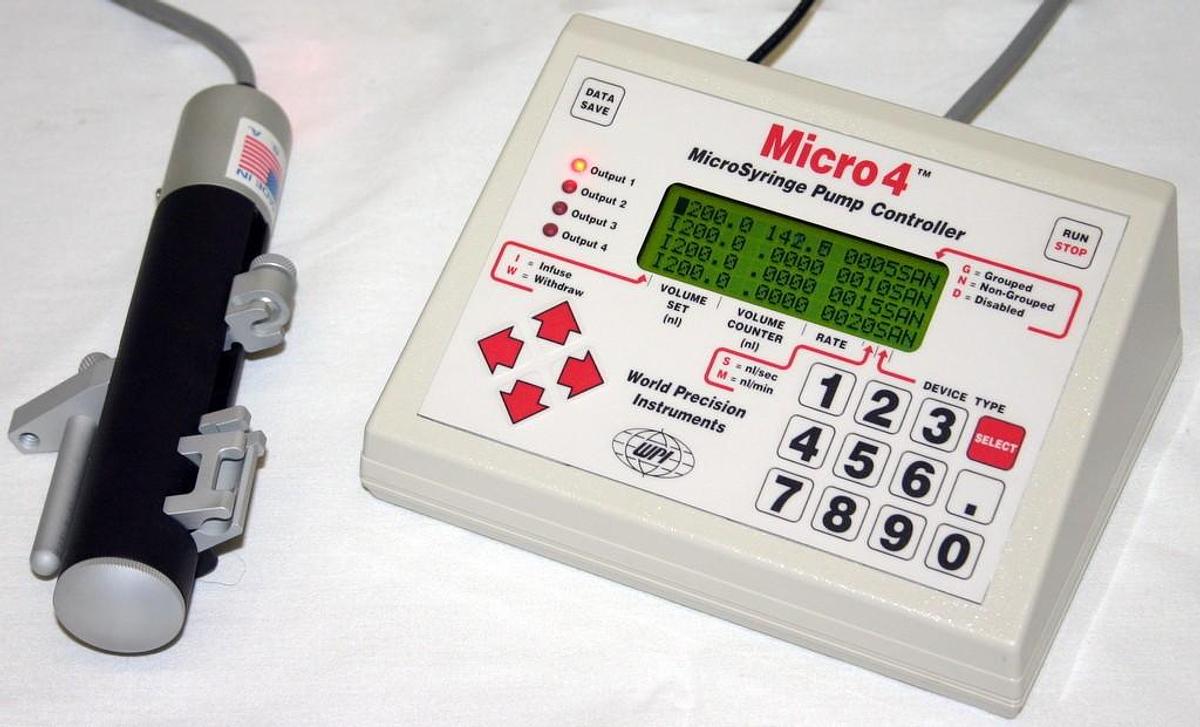

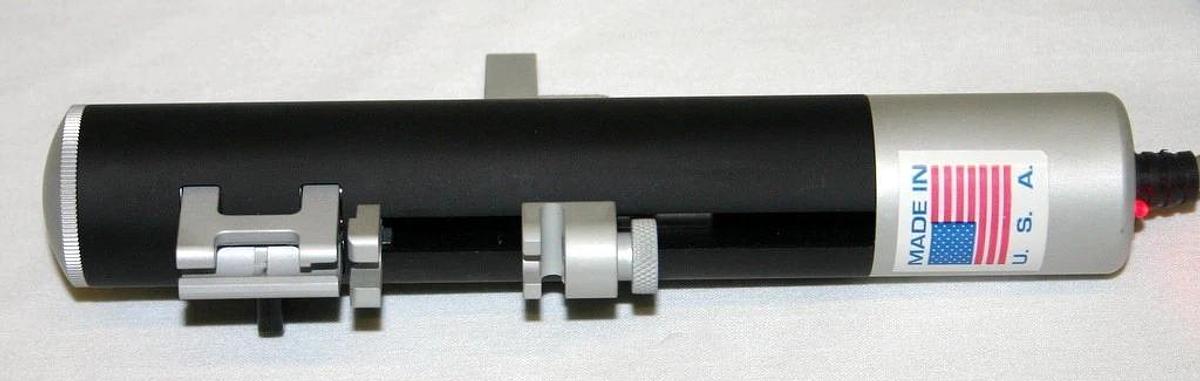

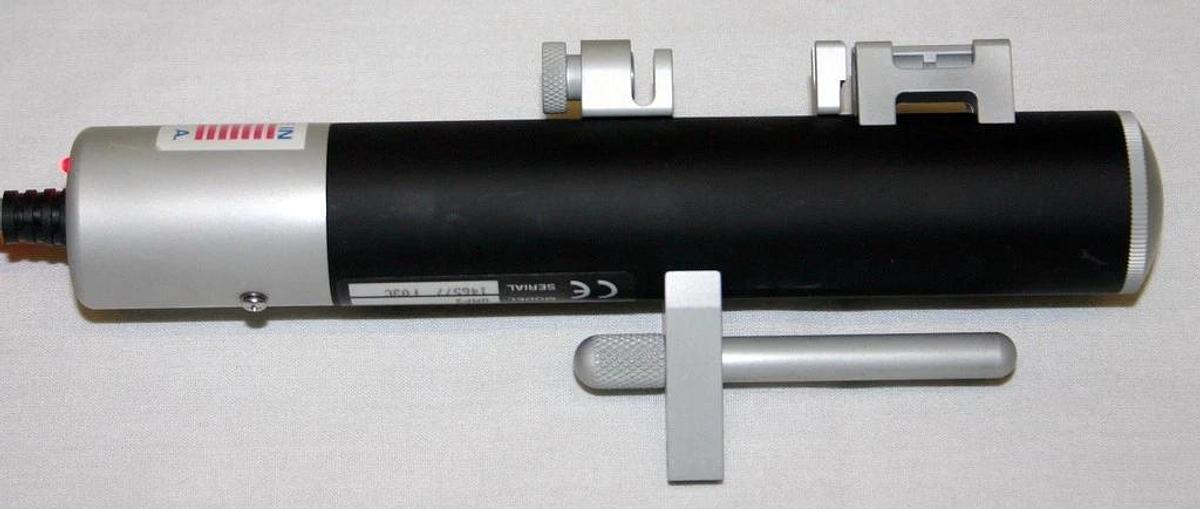

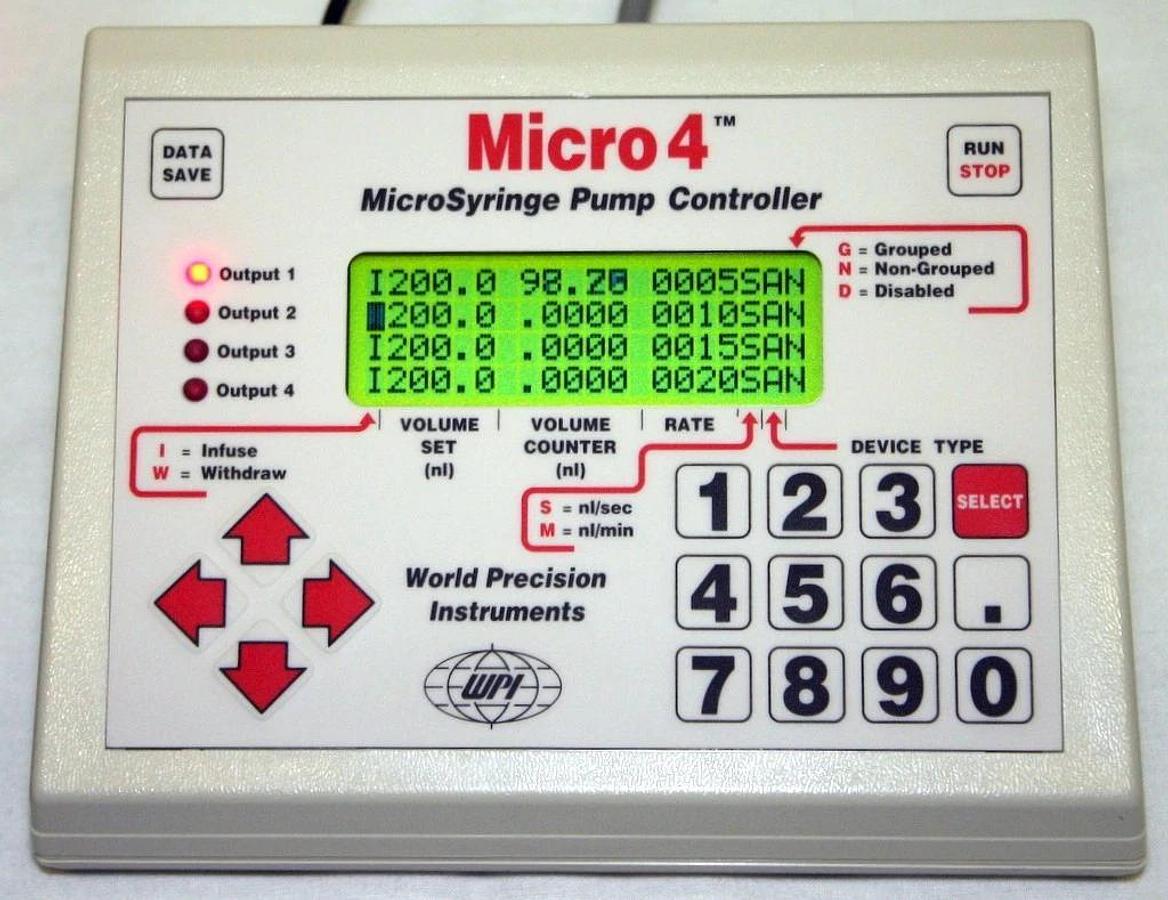

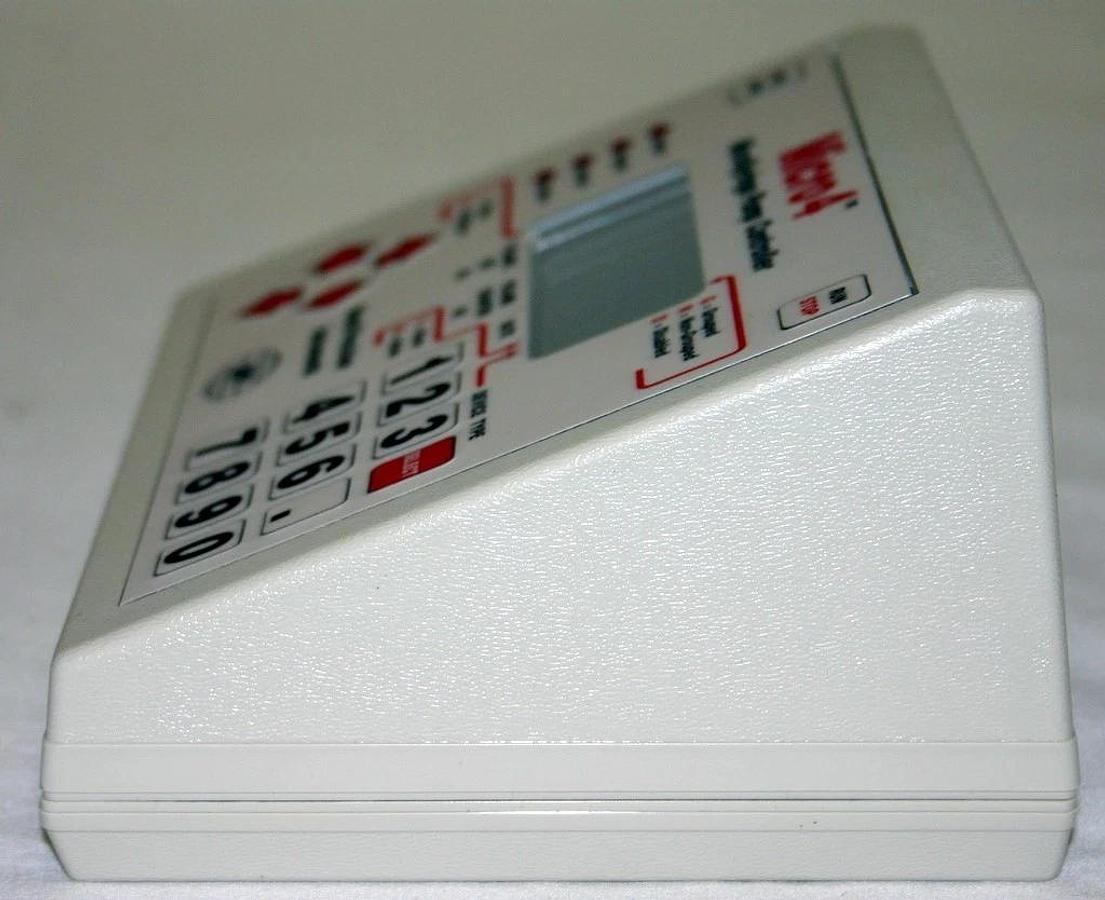

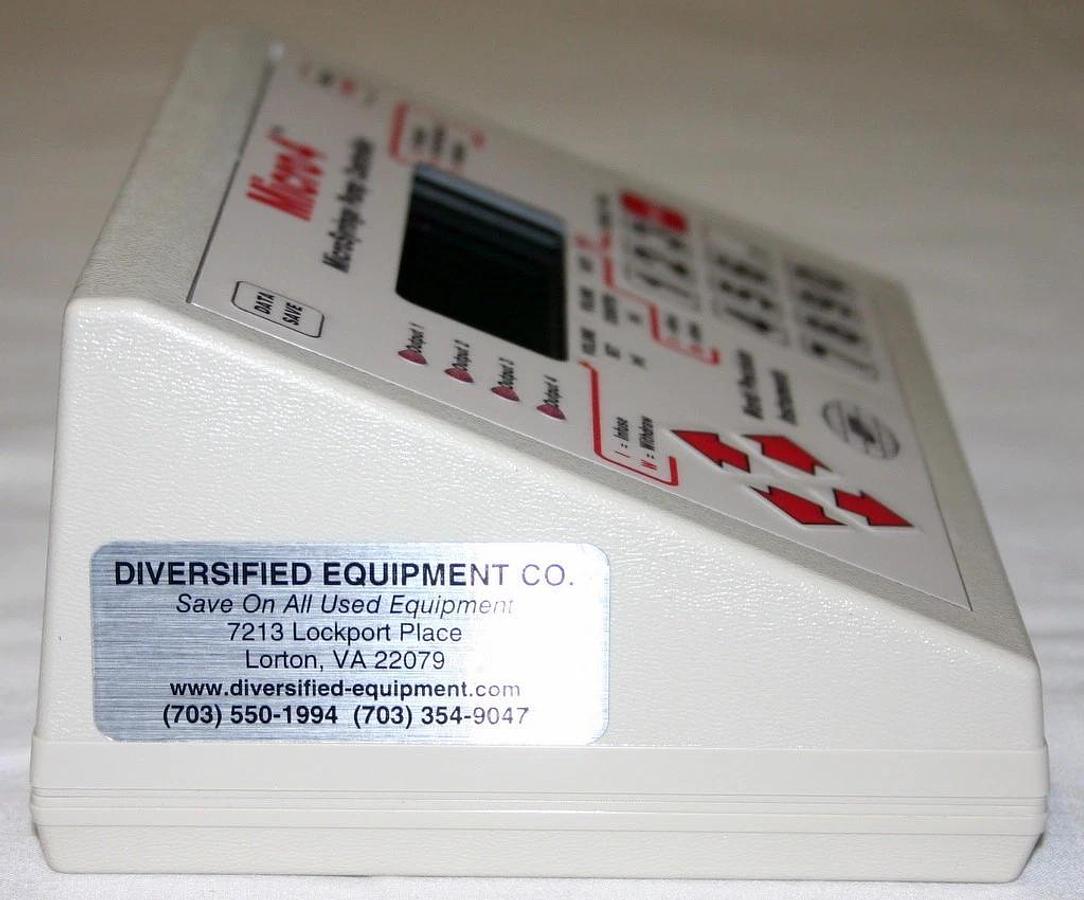

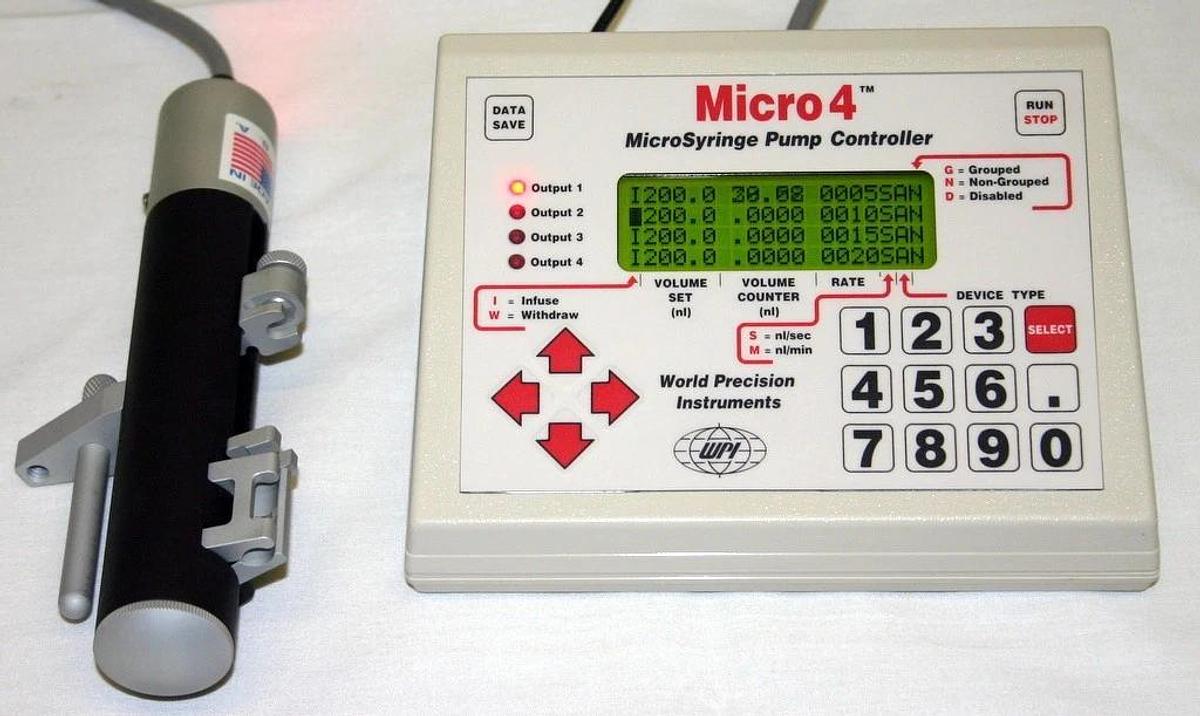

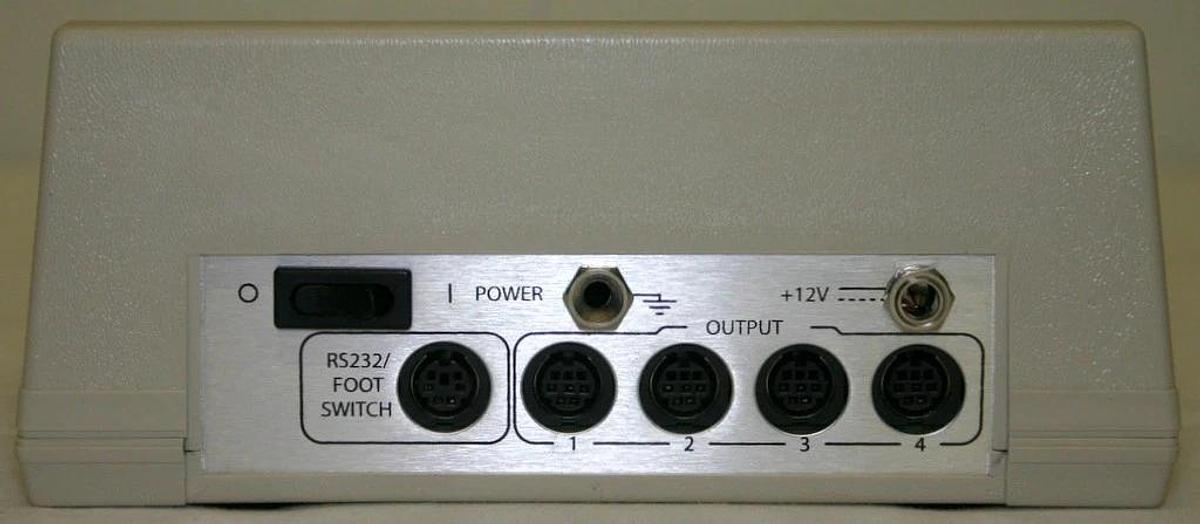

WORLD PRECISION INSTRUMENTS WPI MICROSYRINGE PUMP CONTROLLER UMC4 & PUMPS UMP3 World Precision Instruments WPI Micro 4 Microsyringe Pump Controller, Model UMC4 UltraMicroPump III, Model UMP3 Stereotaxic Included: Controller and Pump. Syringe not included, must be purchased seperately. Manufacturers Description: Versatile injector for sub-microliter volumes. Perfect for a  wide range of applications including intracellular injection, micro delivery of biochemical agents or dyes, cell separation, and in vitro fertilization. Smart Controller: An Integral component in the UMP III system is a microprocessor-based controller, Micro4, which provides an intelligent and easy-to-use interface to up to four syringe pumps. Operating parameters are set with the membrane keypad and LCD display. From the key pad the user can select the following functions: Set pump to infusion or withdrawal mode. Enter the volume to be infused or withdrawn, rate of delivery, and syringe type. Synchronize the starting and stopping of any combination of syringe pumps. User parameters can be stored in the devices non-volatile memory for instant recall when the unit is powered on. UltraMicroPump III: Can dispense as little as 600 picoliters per incremental advance of the syringe piston (using a 5 μL syringe). Syringes may be filled externally and then inserted into the pump or filled while mounted in the pump. Fluids injected or withdrawn are held entirely within the micro syringe to maintain a low fluid dead volume .For  positioning,  the UltraMicroPump III may be attached to any of several WPI micropositioners  such  as  the M3301(manual), DC3001 (motorized), or any manual stereotaxic manipulator. Ultramicropump Specifications (based on 10 μL syringe) Normal Mode: Travel ...........................................................62 mm Minimum Dispensing Volume...............0.58 nL / step (10 μL syringe) Linear Motion Per Step .........................3.175 microns Weight............................................................325 g (11.5 oz) Mounting Rod Diameters.....................7.9 mm (0.31 in.) Controller Power Requirements...2A, 12VDC Dimensions .................................................. 32 mm x 190 mm,  ( 1.3 in. x 7.5 in.) Microstepping Mode: Precision is increased eight-fold Computer Control: An RS-232 port on the rear of the controller can be used to connect it to a computer for use with computer control programs. Fully tested, guaranteed to meet original manufacturers specifications. Condition: Like new. 30 Day warranty. University, Fortune 1000 Company and Federal Gov. agency (certified SAM vendor) Purchase Orders with open billing, Net 30. Net Weight: Four pounds Payment I accept the following forms of payment: PayPal Shipping & Handling Please check eBay's Shipping & Payment tab UPS Ground FREE scheduling, supersized images and templates. Get Vendio Sales Manager. FREE scheduling, supersized images and templates. Get Vendio Sales Manager. Over 100,000,000 served. Get FREE counters from Vendio today!
